Capacitive touch screen
Projected Capacitive Touch Panel (PCAP) was actually invented 10 years earlier than the first resistive touchscreen. But it was no popular until Apple first used it in iPhone in 2007. After that, PCAP dominates the touch market, such as mobile phones, IT, automotive, home appliances, industrial, IoT, military, aviation, ATMs, kiosks, Android cell phones etc.
Projected capacitive touchscreen contains X and Y electrodes with insulation layer between them. The transparent electrodes are normally made into diamond pattern with ITO and with metal bridge.

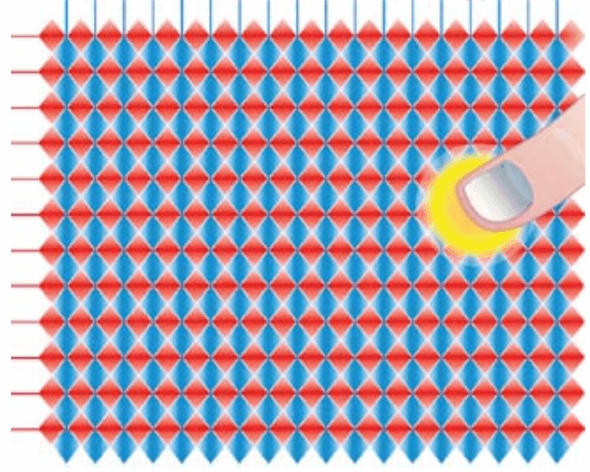

Fig. 1. P-CAP X and Y electrode structure

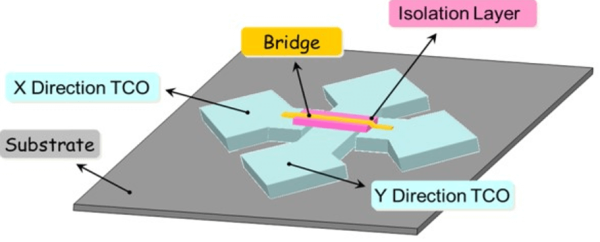

Fig. 2. Metal Bridge in P-CAP

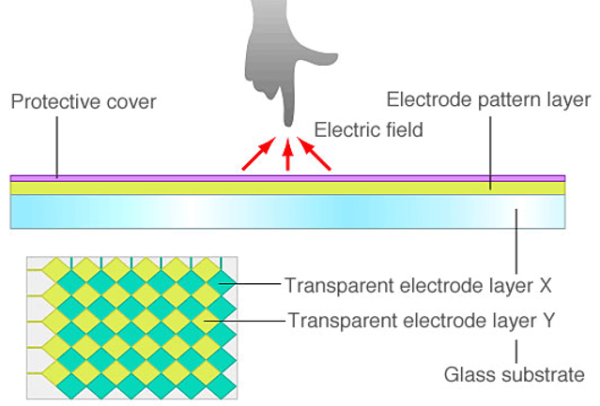

Human body is conductive because it contains water. Projected capacitive technology makes use of conductivity of human body. When a bare finger touches the sensor with the pattern of X and Y electrodes, a capacitance coupling happens between the human finger and the electrodes which makes change of the electrostatic capacitance between the X and Y electrodes. The touchscreen controller detects the electrostatic field change and the location.
Capacitive Touchscreen Advantages
In There are many advantages for P-CAP:
· Projected capacitive supports multiple touches (Multi-touch), so it supports a lot of gestures: Zoom in and out (pinch/spread), scroll, swipe, drag, slide, hold/press, rotate, tap etc.
· Excellent image clarity because of high transmission.
· Excellent sensitivity.
· More resistance to the scratches because the surface can be made by tampered glass, such as gorilla glass or dragontrail glass which can have the surface hardness of 9H. Only diamond can make a scratch.
· Resistance to contaminants and liquid. It is easier to get clean of dust, grease, moisture etc.
· With the new development, projected capacitive touch panels can support gloved hand touch with different glove materials and touch with water or even with salt water.
Resistive Touchscreen: Introduction
Before 2007, resistive technology was the most popular touch panel market. From its name, we know that the technology relies on resistance. A resistive touch screen is made of a glass substrate as the bottom layer and a film substrate (normally, clear poly-carbonate or PET) as the top layer, each coated with a transparent conductive layer (ITO: Indium Tin Oxide), separated by spacer dots to make a small air gap. The two conducting layers of material (ITO) face each other. When a user touches the part of the screen with finger or a stylus, the conductive ITO thin layers contacted. It changes the resistance. The RTP controller detects the change and calculate the touch position. The point of contact is detected by this change in voltage.

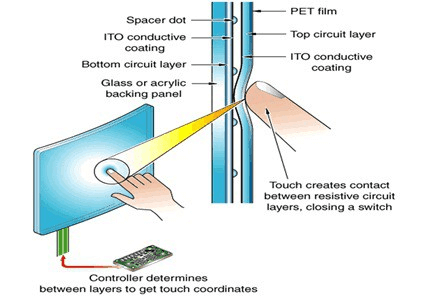

Fig. 4. Resistive Touchscreen Technology (RTP)
Resistive Touchscreens Advantages
With the fast development of projected capacitive, resistive touchscreen devices market is shrinking rapidly but it is still widely used in some industrial applications because of the following advantages.
· Low cost and simple manufacturing process.
· Low power consumption and easy drive.
· Easily be activated with any touch material as long as the pressure is applied (finger, stylus, glove, pen etc.) (not keys to cause scratches on surface).
· Robust during harsh climate and rugged environment and no false touch.
Resistive vs capacitive touch Screens
The following table shows the comparison of resistive and capacitive touch screens. It is up to your application to select the types of technology to use.
| Resistive Touch Sensor | Capacitive Touch Sensor | |
| Cost | Low | Relatively high, can be low for especial design |
| Multi-touch | No | Yes |
| Touch Gestures | Difficult | Yes |
| Touch Durability | 3H, easy scratch | Can be as high as 9H, hard to scratch |
| Power Consumption | Lower | Higher |
| Touch Sensitivity | Low | High (Adjustable) |
| Touch Resolution | High | Relatively low |
| Image Clarity | Poor | Good |
| Touch Material | Any type | Fingers. Can be designed to use other materials like glove, stylus, pencil etc. |
| Touch with water, oil | No design change | Need special design |
| Surface Decoration | Difficult | Easy |
| Different Shape | Difficult | Easy |
| Overlay | Can be done | No |
| 3D surface | Difficult | Achievable |
| Size | Small to medium size | Small to very big size |
| Under Rugged Environment | Easy | Difficult |
| False Touch | No | Need careful calibration |
| functionality Sensitive to EMI/RFI | Low | High, shield has to be designed |
